YA、YK圓振動篩

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

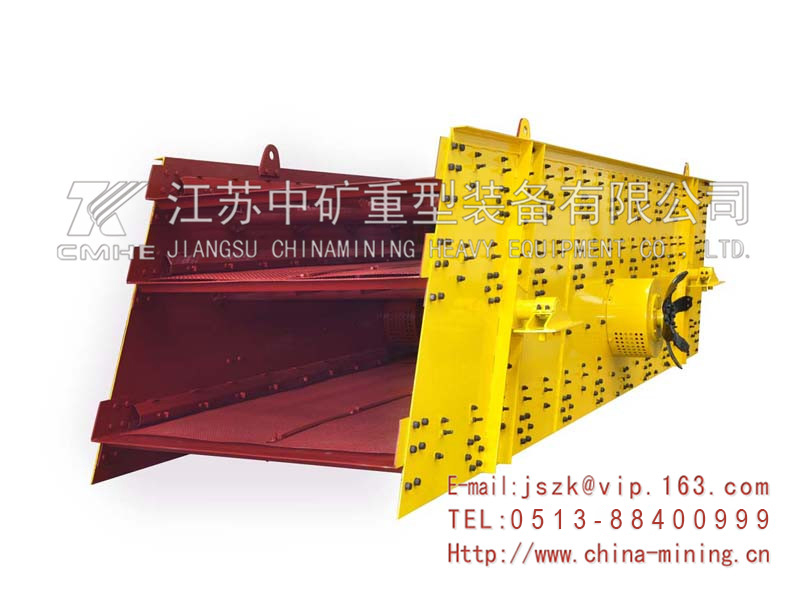

YA、YK振動篩

YA、YK振動篩概述：
YA系列振動篩為座式安裝。篩面傾角的調整可通過改變彈簧支座位置高度來實現。電動機可安裝在篩框的左側，也可安裝在篩框的右側，如無特殊要求，按物料運動方向的左側安裝供貨。振動器安裝在篩箱側板上，并由電動機通過三角皮帶帶動旋轉，產生離心慣性力，迫使篩箱振動。廣泛適用于煤、石灰石、碎石、砂礫、金屬或非金屬礦石及其它物料的篩分。
YK系列振動篩按照力學原理設計的多層數、運動為圓周運動的一款振動篩，且是專業為礦山篩分物料設計的。同時也廣泛應用于選煤、建材、電力、化工、鐵路、交通、水泥等物料的分級。

YK Vibrating Screens are specifically designed for screening mineral stones at the working site. This series feature of various models,novel structure.strong exciting force,large processing capacity, high screening ratio,little vibrating noise,completely new design,state-of-the-art manufacturing.All this features make this screen durable and easy for maintenance.This screen has been widely used in construction,transportation，energy，cement，mining and chemical industries.

■增強激振力，增加篩分產能

■篩分效率高、振動噪音小

■機身結構新穎，堅固耐用，便于維修

Strong in vibration and pwerful in processing capablity;

High in efficiency and small in vibrating noise;

Durable in con struction and easy in maintenance.

■技術參數表｜Technical Date

型號	篩面層數	篩面規格(mm )	進料尺寸上限(mm )	處理能力(t/h)	振動頻率(Hz)	電機功率(kw )	重量	外形尺寸(mm )
2YK-1230	2	1200×3000	100	7.5-80	16.2	5.5	2340	3900×1900×1000
3YK-1230	3	1200×3000	100	7.5-80	16.2	7.5	3050	3900×1900×1500
3YK-1548	3	1500×4800	200	30-200	16.2	15	6866	5906×2100×1900
4YK-1548	4	1500×4800	200	30-250	16.2	18.5	7360	5906×2100×2150
2YK-1854	2	1800×5400	250	50-300	16.2	18.5	6769	6509×2536×1810
3YK-1854	3	1800×5400	250	50-300	16.2	22	8285	6509×2536×1910
4YK-1854	4	1800×5400	250	50-300	16.2	30	9796	6509×2536×2250
2YK-2160	2	2100×6000	250	100-400	16.2	30	9680	7150×2670×2120
3YK-2160	3	2100×6000	250	100-400	16.2	30	10206	7150×2670×2270
4YK-2160	4	2100×6000	250	100-400	16.2	37	11800	7150×2670×2650
2YK-2460	2	2400×6000	300	150-600	16.2	30	80130	7150×2900×2120
3YK-2460	3	2400×6000	300	150-600	16.2	30	12350	7150×2900×2350
4YK-2460	4	2400 ×6000	300	150-600	16.2	37	13850	7150×2900×2680
3YK-2475	3	2400×7500	300	200-650	16.2	18.5×2	14250	7150×2900×2350
2YK-3072	3	3000×7200	300	260-800	16.2	22×2	15883	7350×3500×2350

型號	篩面層數	篩面規格	進料粒度上限	處理能力(t/h)	振動頻率(Hz)	電機功率(kW)	外型尺寸
3YK-1245	3	1200×4500	200	15-80	16.2	11	5600×1800×1850
2YK-1548	2	1500×4800	200	30-180	13-16	15	1906×2100×1600
3YK-1548	3	1500×4800	200	30-200	13-16	15	5906×2100×1900
4YK-1548	4	1500×4800	200	30-250	13-16	18.5	5906×2100×2150
2YK-1854	2	1800×5400	250	50-300	16.2	18.5	6509×2536×1810
3YK-1854	3	1800×5400	250	50-300	16.2	22	6509×2536×1910
4YK-1854	4	1800×5400	250	50-300	16.2	30	6509×2536×2250
2YK-2160	2	2100×6000	250	100-400	16.2	30	7150×2670×2120
3YK-2160	3	2100×6000	250	100-400	16.2	30	7150×2670×2270
4YK-2160	4	2100×6000	250	100-400	16.2	30	7150×2670×2650
2YK-2460	2	2400×6000	300	150-600	16.2	30	7150×2900×2650
3YK-2460	3	2400×6000	300	150-600	16.2	30	7150×2900×2350
DF-1230	1	1200×3000	200	20-200	16.2	5.5	3500×1800×1100
DF-1548	1	1500×4800	250	50-450	16.2	15	5330×2000×1300
DF-1854	1	1800×5400	300	70-600	16.2	15	5630×2200×1320
DF-2160	1	2100×6000	300	120-750	16.2	15	6550×2600×1420
